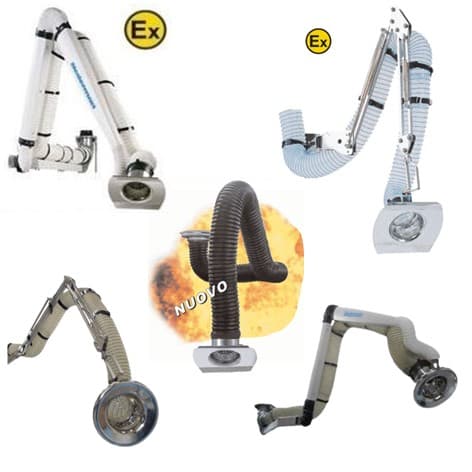

Extraction arms for ATEX explosive applications
Source-capture systems for ATEX explosive applications: self-supporting conductive technology certified for high-risk gas and dust zones.
Self-supporting articulated arms engineered specifically for localized source-capturing of contaminants within ATEX explosive applications. In industrial environments and laboratory cells, the accumulation of combustible powders or solvent vapors creates a critical risk of flash fires and explosions. These systems extract hazardous layers right at the emission source, preventing the formation of dangerous explosive atmospheres. Manufactured completely from conductive components and equipped with certified grounding paths, they eliminate static spark risks to fully protect workers and factory assets across strict explosive classifications.
Certified engineering for ATEX explosive applications matching Zone 1 and 2 (Gas) alongside Zone 21 and 22 (Dust).
Double-bonding structural grounding designed to completely eliminate static charges inside the duct.
High-sanitary acid-resistant stainless steel setups optimized for chemical and pharmaceutical lines.
Technical Specifications & ATEX Zone Safety Classifications
| ATEX Gas Certification | Zone 1 (likely atmosphere) & Zone 2 (unlikely/short duration) |
| Duct Diameters | Laboratory (Ø 75/100 mm) - Heavy Industrial (Ø 160/200 mm) |
| Metric Reach / Length | 2, 3, 4, 5 meters (extendable with wall-mounted brackets) |
| Chemical-Physical Resistance | AISI 316 stainless steel or conductive plastic materials |
Product Features
Design Features
- Verified Safety Grounding: Dual-wire continuous electrical bonding to ensure reliable discharge of static friction build-up.
- Zonal Code Compliance: Components strictly engineered to operate safely within high-risk source-capture points (Zones 1/21 and Zones 2/22).
- Certified Conductive Ducts: Built utilizing specialized materials designed to withstand and safely dissipate raw particulate friction.
- External Non-Contaminating Pantograph: Support mechanism positioned outside the airflow to clear internal traps and ease cleaning.
- Polished Anti-Acid Stainless Steel: Exposed metallic parts crafted to withstand corrosive chemical agents and guarantee code sanitation.
- 360-Degree Fluid Maneuverability: Balanced rotation swivels and friction joints for steady positioning directly over the emission hazard.
Applications
- ATEX Explosive Dust Applications (Zones 21/22): Localized handling of flammable metal grains (aluminum, magnesium), organics (flour, starches, sugar), and composites.
- ATEX Explosive Gas Applications (Zones 1/2): Source-capture of chemical solvent fumes, volatile liquid emissions, and unstable gaseous blends.
- Pharmaceutical & Chemical Plants: Securing bulk material handling areas, powder dispensing booths, and reactive mixing lines.
- Testing & Laboratory Enclosures: Localized fume capture on laboratory benches working with volatile substances classified under explosion zoning.
